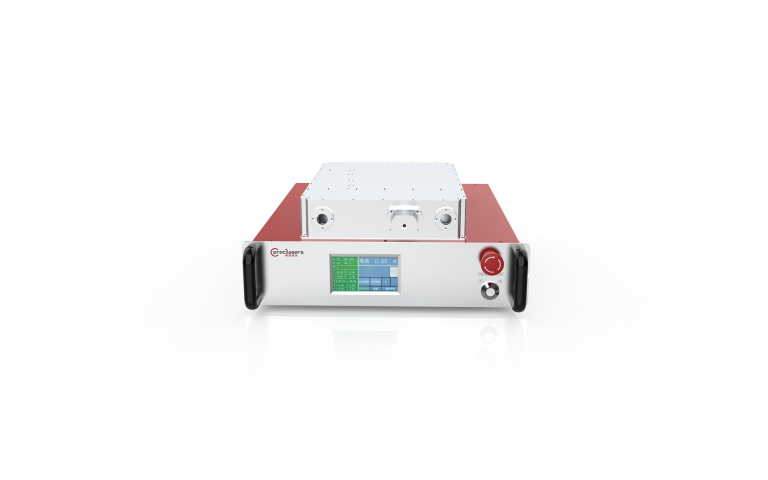

1064nm Nanosecond laser
Precilasers offers high performance 1064nm pulse fiber laser, it has high pulse energy and hig peak power. The laser can be used in non-linear frequency conversion、micromachining and spectroscopy application. The excellent beam quality and stability of the 1064nm pulse fiber laser ensure the accuracy and repeatability in material processing.
Features
- Compact design
- Good stability
- Excellent beam quality
Application
- spectroscopy
- Precision machining
Main parameters
|
Specification |
|||
|
Partnumber |
FL-NS-1064-x(1) |
||
|
Center Wavelength |
1064.00nm |
||
|
Spectral Width |
<1nm |
||
|
Operational Mode |
pulse |
||
|
Beam Diameter |
1.5-1.9mm(can be custom made） |
||
|
Average Power |
>60W |
>100W |
>150W |
|
Pulse Width |
1-30ns |
1-30ns |
150-300ns |
|
Repetition Rate |
100-1000kHz |
100-1000kHz |
100-300kHz |
|
Pulse Energy |
>120uJ@20ns |
>200uJ@20ns |
>400uJ@300ns |
|
Polarization |
>18dB |
>16dB |
>16dB |
|
Beam Quality |
M²<1.2 |
M²<1.3 |
M²<1.3 |
|
Beam Waist Location |
output aperture±0.5m |
||
|
Beam Divergence (full angle) |
<2mrad |
||
|
Beam Circularity |
>90% |
||
|
Beam Pointing Stability (PP) |
<10μrad/℃ |
||
|
Power Stability |
<1% @3hours, RMS |
||
|
Cooling |
water cooling |
||
|
Warm-Up Time |
|||
|
Cold Start |
<30 minutes |
||
|
Warm Start |
<10 minutes |
||
|
Demension and Weight |
|||
|
Controller Size |
≤483mm x 540mm x 112.5mm |
||
|
Laser Head Size |
≤226mm x 358mm x 54mm |
||
|
Chiller Size |
≤58cm x 29cm x 52cm |
||
|
Laser Head Weight |
≤10kg |
||
|
Laser Controller Weight |
≤25kg |
||
|
Chiller Weight |
≤25kg |
||
|
Cable Length Between Laser Head And Controller |
>2m(can be custom made other length） |
||
|
Environment and Power Supply |
|||
|
Operating Temperature（No condensing） |
15-35 ℃（water cooling） |
||
|
Power Supply |
100V-240V, AC, 50/60Hz |
||
|
Power Comsumption |
<1kW |
||
|
Communication |
RS422 |
||
(1)X indicates laser power,unit in W.For example output power is 60W, part number is FL-NS-1064-60
Higher power, more wavelengths, customizable solutions
