PDH frequency locking module

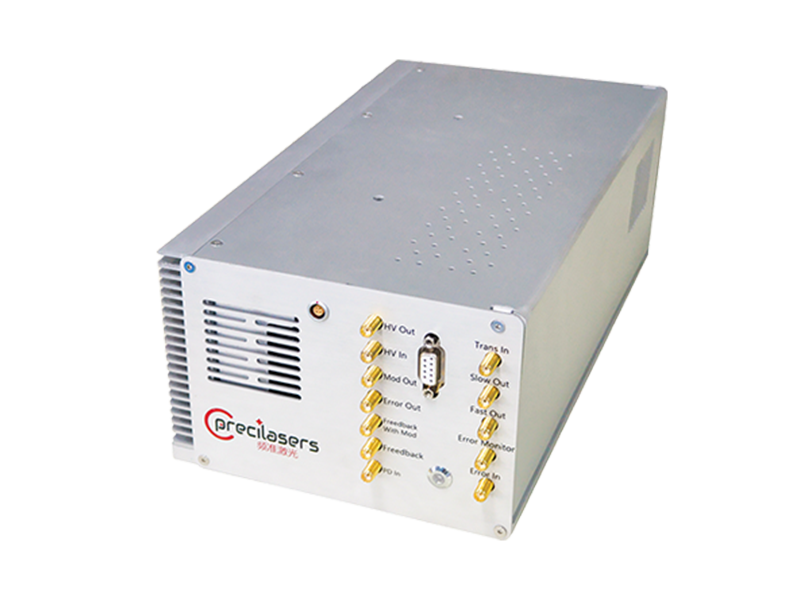

Precilasers has launched a full-featured laser locking controller Precilock-PDH. The controller integrates a modulation and demodulation module, a PID module and a high-voltage amplifier module (optional), and integrates error signal generation, PID servo, and PZT drive functions. It can provide locking control for a variety of common frequency stabilization technologies, such as absorption spectroscopy, saturated absorption spectroscopy, modulation spectroscopy, modulation transfer spectroscopy, and PDH technology.
Features
- High Bandwidth
- Low Noise
- Can Achieve Hz Line Width Ultra-Stable Laser
- Automatic Lock Back
Application
- Laser Frequency Stabilization
- Precision Measurement
Main parameters
|
Specification |
||
|
Partnumber |
PreciLock-L |
PreciLock-PDH |
|
Configuration |
Modulation & De-modulation module + PID module |
|
|
Modulation Frequency Range |
10kHz-100kHz |
10kHz-30MHz |
|
Modulation Frequency Resolution |
1kHz |
|
|
Demodulation Phase |
0-360° |
|
|
Output Modulation Voltage Range |
>10dBm |
|
|
Fast Analog Pid Bandwidth |
>8MHz |
|
|
Fast Analog Pid Output Voltage Range |
-4 V-4 V |
|
|
Low Speed Analog Pid Bandwidth |
>3MHz |
|
|
Low Speed Analog Pid Output Voltage Range |
-5V~+5V |
|
|
High Voltage Amplifier Output Voltage Range (optional) |
0-110V |
|
|
High Voltage Amplifier Gain (optional) |
15 |
|
|
High Voltage Amplifier Bandwidth (optional) |
High impedance load bandwidth 50 kHz Capacitive load bandwidth (small signal output 0.1 uF load) 20 kHz |
|
|
High Voltage Amplifier Maximum Output Current (optional) |
<50 mA |
|
|
PD Signal Input Range |
<1 Vpp |
|
|
PD Signal Input Impedance |
50 Ω， AC coupling |
|
|
Output Scanning Signal |
20Hz,Triangle Wave，-1 V~+5 V |
|
|
Power Supply |
200-240V, AC, 50/60Hz，Optional 110V |
|
Higher power, more wavelengths, customizable solutions
