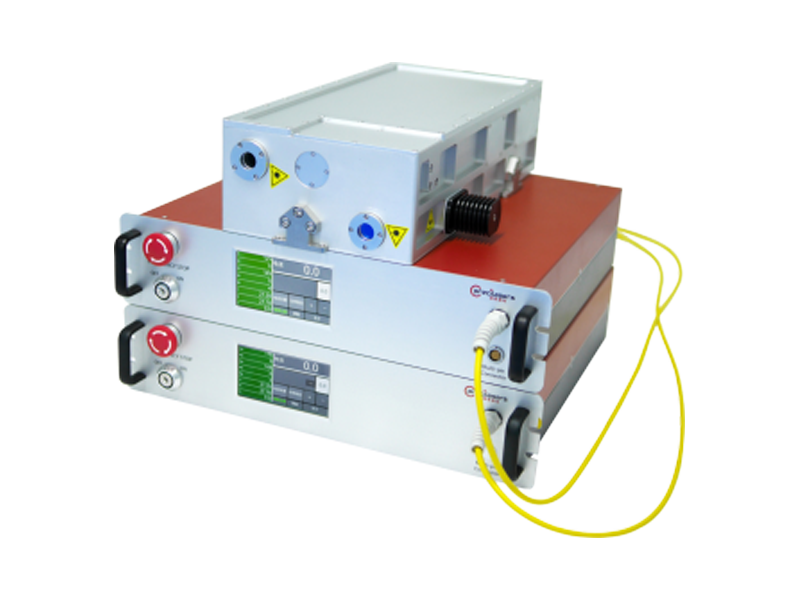

382-405nm Laser
Based on high-power, low-noise fiber amplification, as well as sum frequency and frequency doubling technologies, it enables high-power, narrow-linewidth laser output at any central wavelength within the range of 382-405 nm.
Features
- Narrow Linewidth
- Low RIN
- High Power
- Power Stability：<0.75%rms, 3hrs
- Excellent Beam Quality (M² <1.1)
- Never Mode-hop
- High Temperature And Vibration Resistance
Application
- Lithium Ion
- Calcium Ion
- Strontium Atom Cooling
- Quantum Simulation
- Laser Spectroscopy
- Medicine And Biophotonics
- Electromagnetically Induced
- Transparency
Main parameters
|
Specification |
||||
|
Partnumber |
FL-SF-XXXX-YY-CW(1) |
|||
|
Wavelength Range |
382-385nm |
385-392.5nm |
392.5-405nm |
|
|
Typical Wavelength |
385nm |
390nm |
399nm |
|
|
Seed Laser Type |
Fiber DFB Seed Laser（1530-1596nm） |
Fixed External Cavity Diode Laser（FECL,1530-1596nm） |
||
|
Output Power |
＞0.04W/2W/4W |
＞0.04W/2W/4W/8W |
＞0.04W/2W |
|
|
Thermal Tuning Range |
＞0.25nm，Never Mode-hop |
＞30GHz, Never Mode-hop |
||
|
Output Mode |
Free Space Output |
|||
|
Beam Diameter（2） |
0.7-1.0mm |
|||
|
Power Tuning Range |
10-100% |
|||
|
Beam Pointing Stability |
＜50μrad |
|||
|
Linewidth（3）（100us） |
＜4kHz/10kHz |
＜20kHz/40kHz |
||
|
PER |
linear,＞20dB |
|||
|
Power Stability |
＜0.75%@3hours, RMS |
|||
|
Beam Quality |
TEM00，M2＜1.2 |
|||
|
Fast Frequency Tuning Range |
＞3GHz |
＞1GHz |
||
|
Fast Frequency Tuning Bandwidth |
＞5kHz,PZT Tuning |
＞1MHz,Current Tuning |
||
|
AOM Tuning Range(Optional) |
＞±5MHz |
/ |
||
|
AOM Tuning Bandwidth(Optional) |
＞500kHz |
/ |
||
|
RIN |
＜0.3%（RMS,10Hz-100MHz） |
|||
|
Cooling |
Water Cooling |
|||
|
Operation Environment & Power Supply |
|
|
Temperature |
15-30 ℃（Air Cooling） or 15-35 ℃（Water Cooling） |
|
Power Supply |
100V-240V, AC, 50/60Hz |
|
Communication |
RS422 |
(1)XXXX is the laser center wavelength，YY is the laser power，for a 2W 390nm laser,the partnumberis FL-SF-390-2-CW
(2)Beam diameter is only applicable to free space output mode，For PM fiber output mode，the fiber without collimator
(3)Measured by self-hetrodyne method
Higher power, more wavelengths, customizable solutions
