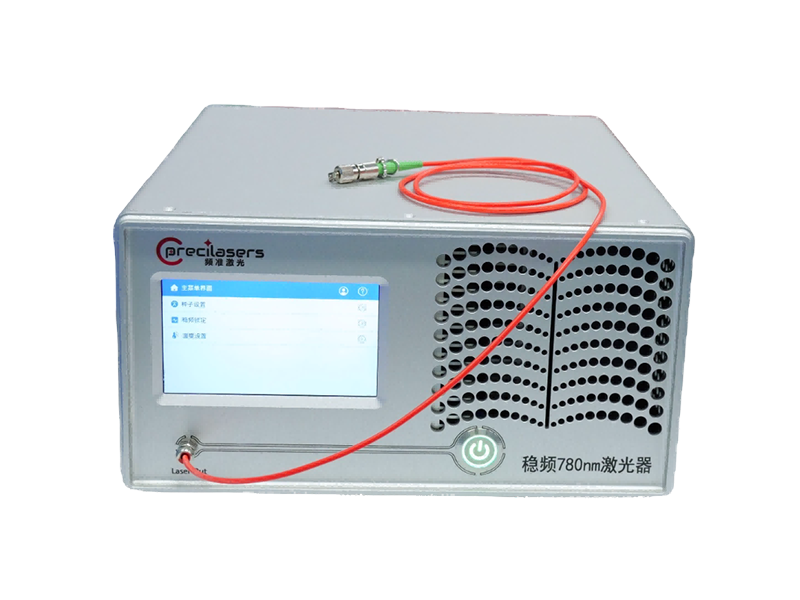

780nm Frequency stabilized laser
Based on Precilasers' narrow-linewidth 780nm laser and all-fiber rubidium frequency-stabilized module, the 780nm frequency-stabilized laser can output narrow-linewidth laser output with good long-term stability, which can be applied to fields such as industrial precision measurement.
Features
- Narrow Linewidth
- Linear Polarization
- High Power
- Active Power Stabilization
- Excellent Beam Quality
- Never Mode-hop
- Resistant to high and low temperature and vibration working environment
Application
- Precision Measurement
Main parameters
|
Specification |
|
|
Partnumber |
FL-SF-780-XX（1）-MTS |
|
Center Wavelength |
780.24nm(2) |
|
Output Power |
>500mW |
|
Power Adjustment Range |
10-100% |
|
Linewidth (100us integral)(3） |
<20kHz |
|
Frequency Stability |
Rubidium Atomic Frequency Stabilization，＜1*10-11 |
|
Long Term Power Stability |
<0.75% @3hrs, RMS |
|
Output Mode |
Single-mode polarization-maintaining fiber output，FC/APC Connectors |
|
Beam Quality |
M2<1.1 |
|
Polarization Extinction Ratio |
>23dB,Linear polarization |
|
Cooling |
Air Cooling |
|
Temperature |
15-30℃ |
|
Power Supply |
100-240V, AC， 50/60Hz |
|
Power Consumption |
<100W |
|
Weight |
<35kg |
(1)X：Laser power, in W, e.g. output power0.1W： FL-SF-780-0.1-MTS
(2)For other central wavelengths, please contact us by email
(3)Fiber-optic delay interferometer test
Higher power, more wavelengths, customizable solutions
