P R O D U C T S

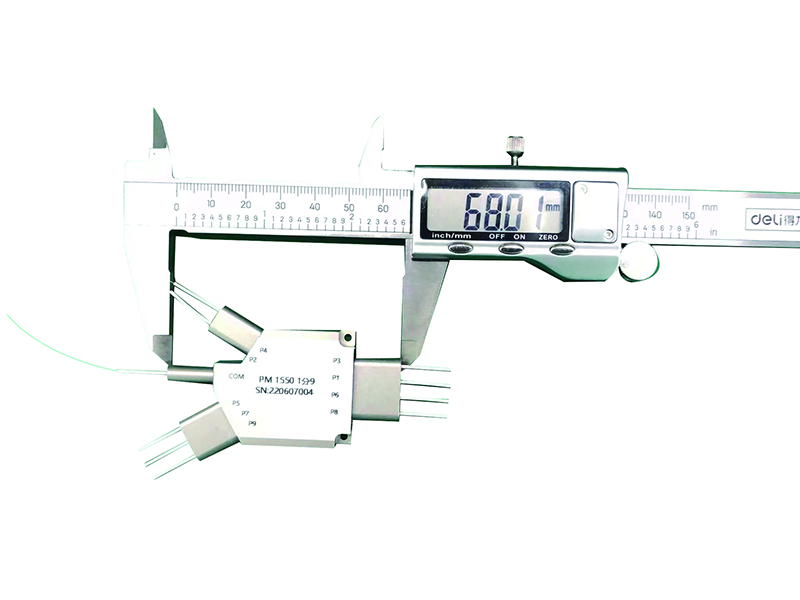

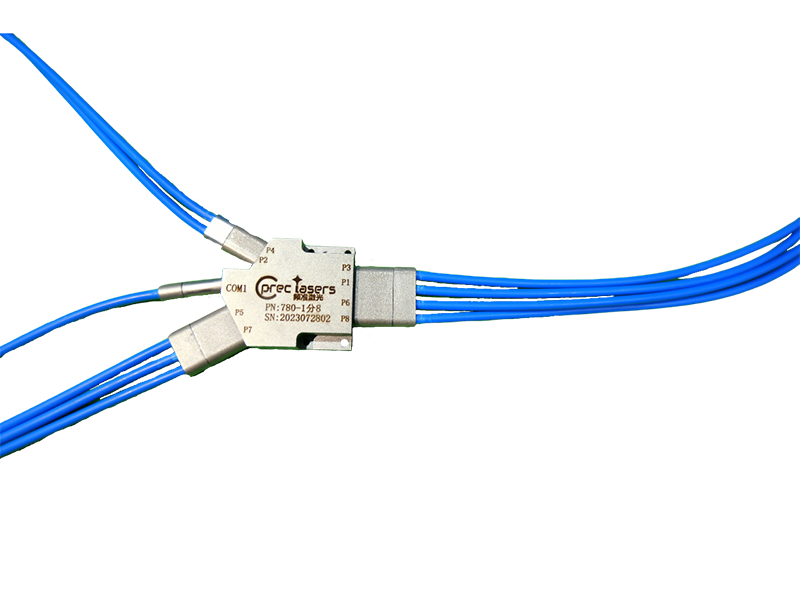

High performance fiber splitter
Precilasers' high-performance fiber splitters achieve high polarization extinction ratio fiber splitting in a small module, which is stable and reliable.
Features
- Low Loss
- Polarization Maintaining
- Small Size
Application
- Quantum Precision Measurement
- Optical Precision Measurement
Main parameters
|
Specification |
||
|
Wavelength Optional Range |
500-2000nm |
|
|
Center Wavelength |
780nm，633nm |
|
|
Polarization Extinction Ratio |
>23dB |
|
|
Number of Input Channels |
1， More channels can be customized |
|
|
Number of Output Channels |
2-9，More channels can be customized |
|
|
Output Power Optical Consistency |
<10% |
|
|
Bandwidth |
>±10nm |
|
|
Additional Insertion Loss |
<1.5dB@780nm |
|
|
Return Light Loss |
>-45dB |
|
|
Maximum Input Power |
>5W@780nm, >1W@509nm |
|
|
Input and Output Connecotor |
FC/APC |
|
|
Casing |
0.9mm Loose tube |
3mm Loose tube |
|
Temperature |
0-50℃ |
|
Higher power, more wavelengths, customizable solutions
