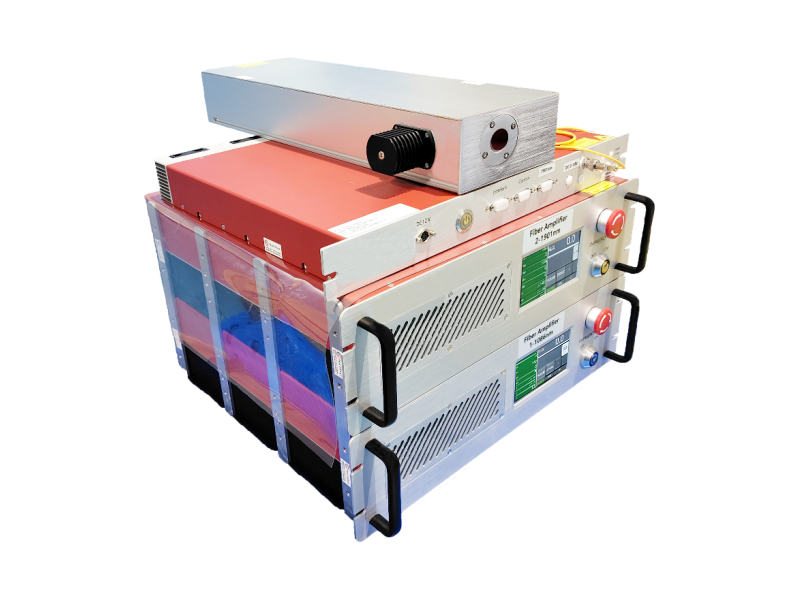

506-567nm Laser
Based on high-power, low-noise Yb-doped fiber lasers amplifier and frequency doubling technology, Precilasers can provide high-power, narrow linewidth laser output from 506 to 567 nm.
Features
- Narrow Linewidth
- Low RIN
- High Power
- Power Stability：<0.75%rms, 3hrs
- Excellent Beam Quality (M² <1.1)
- Never Mode-hop
- High Temperature And Vibration Resistance
Application
- Laser cooling, trapping, Optical Lattice
- Pump laser for OPO, Ti:Saphire
- Biomedical
- Fundamental light for UV laser
Main parameters
|
Specification |
|||||||
|
Partnumber |
FL-SF-XXXX-YY-CW(1) |
||||||
|
Wavelength Range |
506-512nm |
512-532nm |
532nm |
543-556nm |
556-567nm |
||
|
Typical Wavelength |
509nm |
515nm |
532nm |
556nm |
567nm |
||
|
Seed Laser Type |
Fiber DFB Seed Laser（1012-1134nm） |
Fixed External Cavity Diode Laser （FECL,1012-1134nm） |
|||||
|
Output Power |
＞5W/30W |
＞10W/30W |
＞20W/30W/80W |
＞10W/20W |
＞3W |
||
|
Thermal Tuning Range(2) |
＞0.35nm，Never Mode-hop |
＞10GHz，Never Mode-hop |
|||||
|
Output Mode |
PM Fiber Output，FC/APC（Output Power ≤0.5W）OR Free Space Output（Compatible with all versions） |
||||||
|
Beam Diameter（3） |
0.7-1.0mm |
||||||
|
Power Tuning Range |
10-100% |
||||||
|
Beam Pointing Stability |
＜50μrad |
||||||
|
Linewidth（4）（100us） |
＜6kHz/20kHz |
＜20kHz/60kHz |
|||||
|
PER |
linear,＞20dB |
||||||
|
Power Stability |
＜0.75%@3hours, RMS |
||||||
|
Beam Quality |
TEM00，M2＜1.1 |
||||||
|
Fast Frequency Tuning Range |
＞3GHz |
＞1GHz |
|||||
|
Fast Frequency Tuning Bandwidth |
＞5kHz,PZT Tuning |
＞1MHz,Current Tuning |
|||||
|
AOM Tuning Range（Optional） |
＞±5MHz |
||||||
|
AOM Tuning Bandwidth（Optional） |
＞500kHz |
||||||
|
RIN |
＜0.1%（RMS,10Hz-100MHz） |
||||||
|
Cooling |
Air Cooling（Output Power≤20W）/Water Cooling(Compatible with all versions) |
||||||
|
Operation Environment & Power Supply |
|
|
Temperature |
15-30 ℃（Air Cooling） or 15-35 ℃（Water Cooling） |
|
Power Supply |
100V-240V, AC, 50/60Hz |
|
Communication |
RS422 |
Higher power, more wavelengths, customizable solutions
